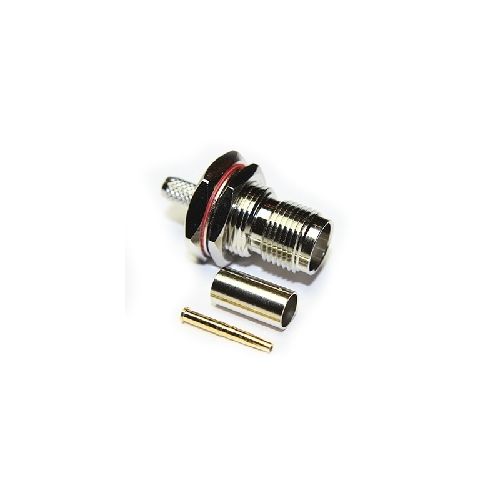

13-254-A3-AH | 13254A3AH | TNC Bulkhead Crimp Jack

TNC Rear Mount Bulkhead Straight Crimp / Crimp Jack, Suitable for use with RG58 and similar cables in group AH.
More Information
Complete Electronics Part No. 13254A3AH
Manufacturers Part No. 13-254-A3-AH
Type Panel / Bulkhead Mount
Impedance 50 Ohm
Working Frequency Up To 11 GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 11GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-17
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight: 17.81g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: Delrin
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
