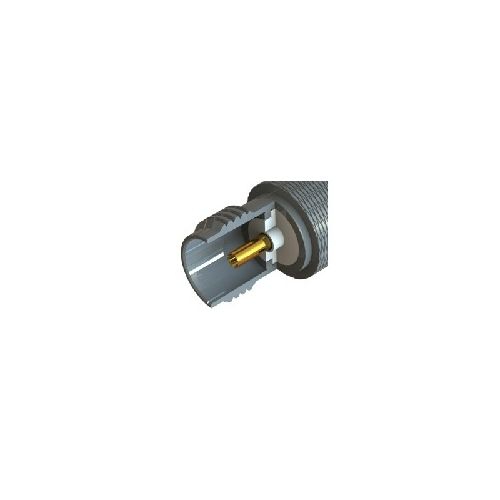

13-256-A0-AA | 13256A0AA | TNC Bulkhead Crimp Jack
TNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( 4 Part ), Suitable for use with RG178 and similar cables in group AA.
| Complete Electronics Part No. | 13256A0AA |
|---|---|
| Manufacturers Part No. | 13-256-A0-AA |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight: 19.77g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: Delrin
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
