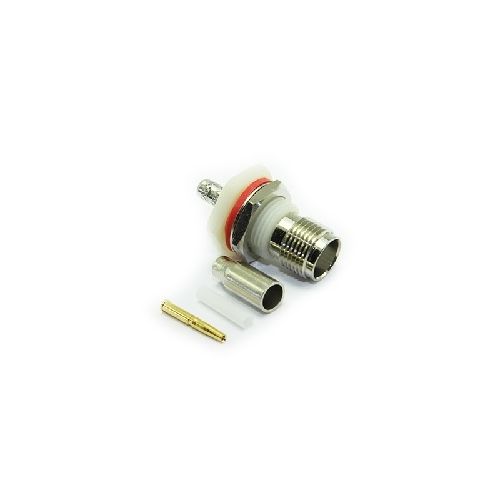

13-260-A5-AB | 13260A5AB | TNC Bulkhead Crimp Jack
TNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack (4 Part) Suitable for use with RG179 and similar cables in group AB.
| Complete Electronics Part No. | 13260A5AB |
|---|---|
| Manufacturers Part No. | 13-260-A5-AB |
| Type | Panel / Bulkhead Mount |
| Impedance | 75 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight:
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Body Insulator: ABS
- Insulator: Delrin
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
