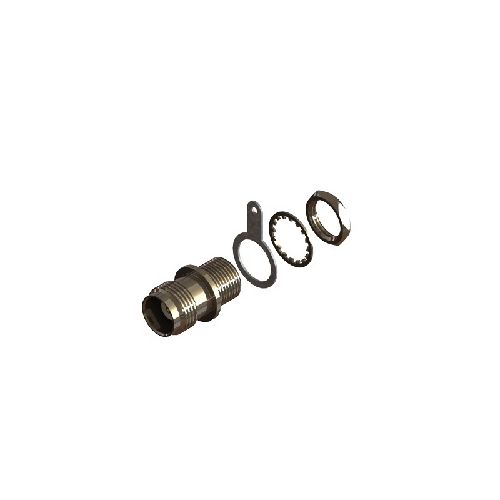

13-352-A3 | 13352A3 | TNC Bulkhead Solder Jack
TNC 50 ohm Straight Front Mount 3/8 x 32 UNEF bulkhead Jack. The solder spill centre contact is gold plated and the Solder Tag is Tin Plated.
| Complete Electronics Part No. | 13352A3 |
|---|---|
| Manufacturers Part No. | 13-352-A3 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 4GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight: 9.09g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Solder Tag Plating: Tin
- Pack Size 1
