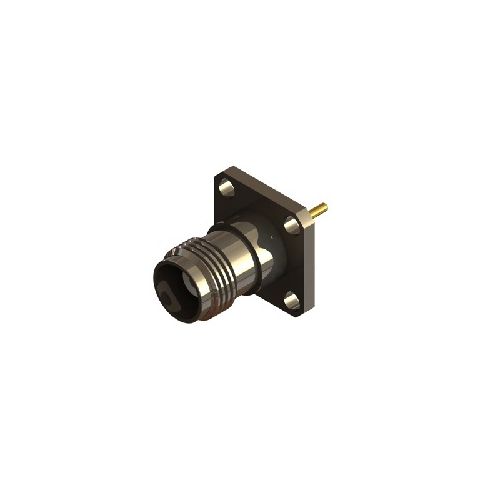

13-373-B3 | 13373B3 | TNC Bulkhead Solder Jack
TNC 50 ohm 4 Hole 17.5 mm Square O Ring Sealed Flange Jack Direct Solder 1.27mm Dia x 4.3mm Post Plated .Nickel Plated Body with a Gold Plated Centre Contact
| Complete Electronics Part No. | 13373B3 |
|---|---|
| Manufacturers Part No. | 13-373-B3 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Mating Cycles: 250
- Contact Retention: 10N min
- Weight: 10.29g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- O Ring: Silicone
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
