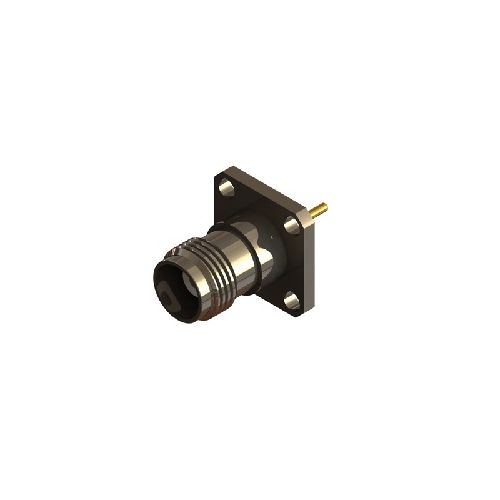

13-375-B3 | 13375B3 | TNC Bulkhead Solder Jack
TNC 50 ohm 4 Hole 19.1 mm Square Flange Jack with 3.1 mm Extended Dielectric and 0.5 mm Dia x 4.9mm Post Plated, Nickel Plated Body Gold Plated Centre Contact
| Complete Electronics Part No. | 13375B3 |
|---|---|
| Manufacturers Part No. | 13-375-B3 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight: 11.03g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
