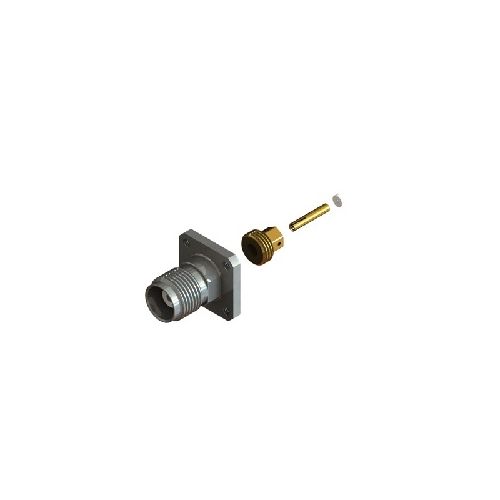

13-384-H3-HB-17.5mm | 13384H3HB175mm | TNC Bulkhead Solder Jack
TNC 50 ohm 4 x M2.5 Hole 17.5 mm Square Flange Stainless Steel Jack, For direct Solder of Semi Rigid Cables
| Complete Electronics Part No. | 13384H3HB175mm |
|---|---|
| Manufacturers Part No. | 13-384-H3-HB-17.5mm |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight: 11.29g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Stainless Steel
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Passivated
- Pack Size 1
