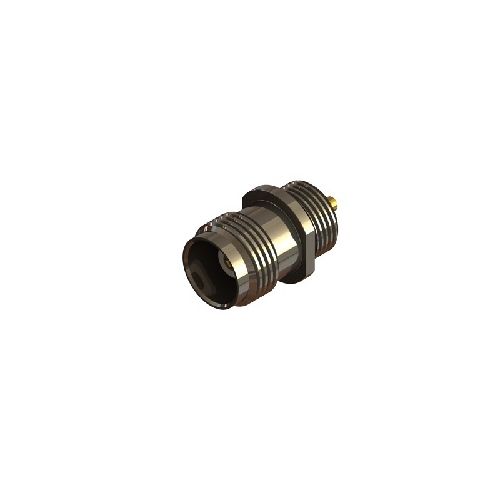

13-388-1-B3 | 133881B3 | TNC Bulkhead Solder Jack
TNC 50 ohm straight bulkhead jack Has a 3/8 x 32 unef Thread to screw into a bulkhead, Solder post centre contact is gold plated. 11mm AF Spanner flat on body
| Complete Electronics Part No. | 133881B3 |
|---|---|
| Manufacturers Part No. | 13-388-1-B3 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Other
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight: 6.07g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -65 to +165°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
