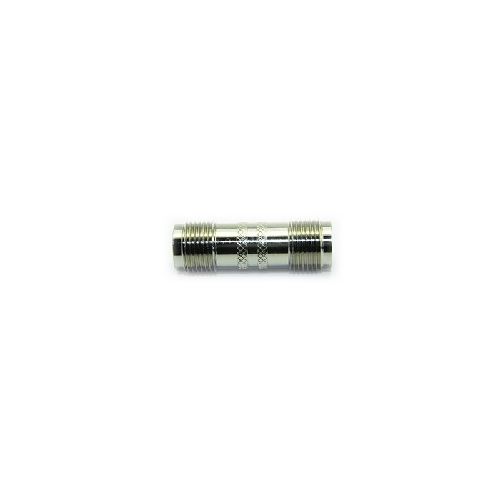

13-500-B36 | 13500B36 | TNC Jack to Jack Adaptor 75 Ohm
TNC true 75 ohm straight jack to jack adaptor. Suitable for High Definition 3GHz applications. Gold plated centre contact.
| Complete Electronics Part No. | 13500B36 |
|---|---|
| Manufacturers Part No. | 13-500-B36 |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight:
- Mating Force: 13.6N max
- Un- Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
