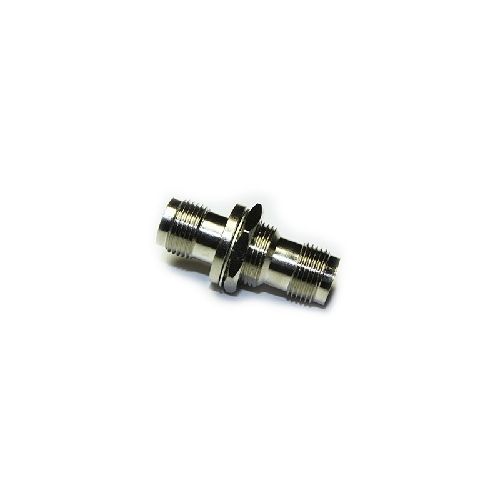

13-501-A3 | 13501A3 | TNC Jack to Jack Bulkhead Adaptor

TNC 50 ohm straight bulkhead mount jack to jack adaptor. Gold plated centre contact.
More Information
Complete Electronics Part No. 13501A3
Manufacturers Part No. 13-501-A3
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 3GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-17
  • RoHS3 Compliant
  • Mating Cycles: 250
  • Contact Retention: 10N min
  • Weight: 19.37
  • Mating Force: 13.6N max
  • Un- Coupling Force: 13.6N max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
