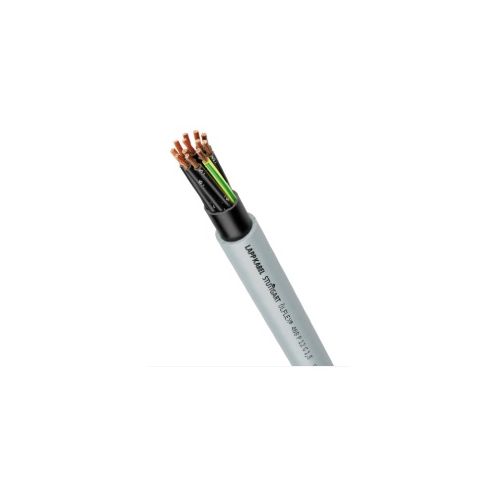

1308957 | OLFLEX 408 P 7X1,5 | Harsh Conditions Cable
Abrasion- and oil-resistant control cable, Number of Conductors: 7, Conductor Diameter: 1.5mm², Without GN/YE Protective conductor
| Complete Electronics Part No. | 1308957 |
|---|---|
| Manufacturers Part No. | 1308957 |
| Series: | OLFLEX 408 P |
| Number of Conductors: | 7 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description
1308957 | ÖLFLEX® 408 P Cable, 7X1.5
Non Shielded PUR / PVC Power and Control Cable
With robust PUR outer sheath
Number of Conductors: 7
Conductor Diameter: 1.5mm²
Cable Outer Diameter: 8.9mm
Without Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC TM2)
Core identification: White numbers on black (EN 50334)
Inner Sheath Colour: Black
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL 7001)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC TM2)
Core identification: White numbers on black (EN 50334)
Inner Sheath Colour: Black
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL 7001)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -15°C to 70°C
Current rating according to VDE 0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -15°C to 70°C
Chemical resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
Ozone resistant - Yes acc. to EN 50396, method B
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
Ozone resistant - Yes acc. to EN 50396, method B
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Outer sheath PUR material is resistant to abrasions, notches and cuts
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Outer sheath PUR material is resistant to abrasions, notches and cuts
Inner interstice filling of the outer sheath made of PVC
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, VDE Certified
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, VDE Certified
Reel Length= 100M
Lapp part number: 1308
