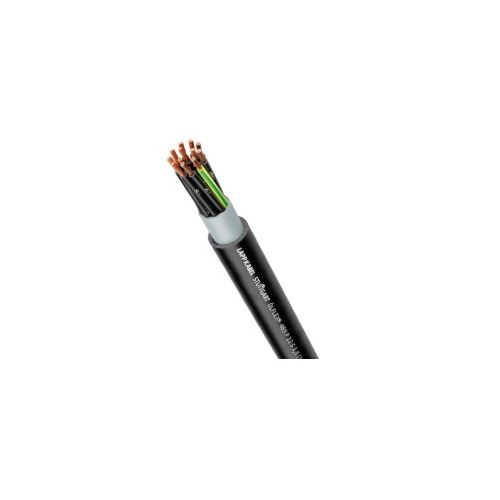

1311504 | OLFLEX 409 P 4G4 | Harsh Conditions Cable
Abrasion- and oil-resistant PUR/PVC control cable, Conductors: 4, Conductor Diameter: 4.0mm², Cable Outer Diameter: 11.8mm, With GN/YE Protective conductor
| Complete Electronics Part No. | 1311504 |
|---|---|
| Manufacturers Part No. | 1311504 |
| Series: | OLFLEX 409 P |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 4.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 50 Metres |
Description
1311504 | ÖLFLEX® 409 P Cable, 4G4
Non Shielded PUR / PVC Power and Control Cable
Number of Conductors: 4
Conductor Diameter: 4.0mm²
Cable Outer Diameter: 11.8mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC)
Core identification: White numbers on black (EN 50334)
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Black (RAL 9005)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC)
Core identification: White numbers on black (EN 50334)
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Black (RAL 9005)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Operating voltage of 1000 V according to UL
Current rating according to VDE 0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 80°C
Operating voltage of 1000 V according to UL
Current rating according to VDE 0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 80°C
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
Ozone resistant - Yes
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Outer sheath PUR material is resistant to abrasions, notches and cuts
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Outer sheath PUR material is resistant to abrasions, notches and cuts
Inner interstice filling of the outer sheath made of PVC
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, UL recognised, cUR recognised
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, UL recognised, cUR recognised
Reel Length= 50M
Lapp part number: 1311504
