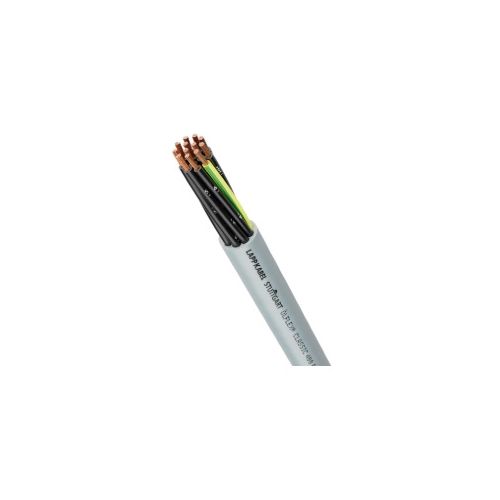

1312007 | OLFLEX CLASSIC 400 P 7G0,5 | Unshielded Cable
Abrasion- and oil-resistant control cable, For multi-functional use, Number of Conductors: 7, Conductor Diameter: 0.5mm²
| Complete Electronics Part No. | 1312007 |
|---|---|
| Manufacturers Part No. | 1312007 |
| Series: | OLFLEX CLASSIC 400 P |
| Number of Conductors: | 7 |
| Conductor Cross Section: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description
1312007 | ÖLFLEX® Classic 400 P Cable, 7G0.5
Unshielded PUR / PVC Power and Control Cable
For multi-functional use
Number of Conductors: 7
Conductor Diameter: 0.5mm²
Cable Outer Diameter: 6.7mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC P8/1, better than the PVC compound TI2)
Core identification: White numbers on black (acc. to EN 50334)
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL7001)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC P8/1, better than the PVC compound TI2)
Core identification: White numbers on black (acc. to EN 50334)
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL7001)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C
Current rating according to VDE 0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C
Chemical resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, damp and, especially, harsh and oily environments
PUR outer sheath is highly chemical resistant and highly oil resistant
Outer sheath PUR material is resistant to abrasions, notches and cuts
Can be used in dry, damp and, especially, harsh and oily environments
PUR outer sheath is highly chemical resistant and highly oil resistant
Outer sheath PUR material is resistant to abrasions, notches and cuts
The PUR outer sheath withstands high mechanical loads
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, Ecolab certified
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, Ecolab certified
Reel Length= 100M
Lapp part number: 1312007
