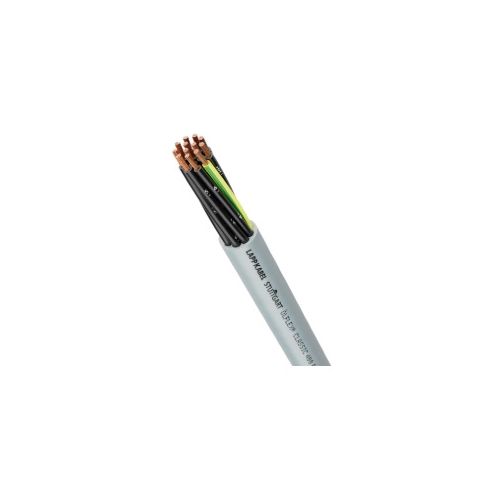

Number of Conductors: 5

Conductor Diameter: 6.0mm²

Cable Outer Diameter: 14.5mm

With GN-YE Protective Conductor



Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC P8/1, better than the PVC compound TI2)
Core identification: White numbers on black (acc. to EN 50334)
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL7001)



Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE  0298-4
Test Voltage: 4kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C



Chemical resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes  acc. to EN 50363-10-2
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes  acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes



For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, damp and, especially, harsh and oily environments
PUR outer sheath is highly chemical resistant and highly oil resistant
Outer sheath PUR material is resistant to abrasions, notches and cuts



The PUR outer sheath withstands high mechanical loads
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, Ecolab certified



Reel Length= 50M

Lapp part number: 1312605
