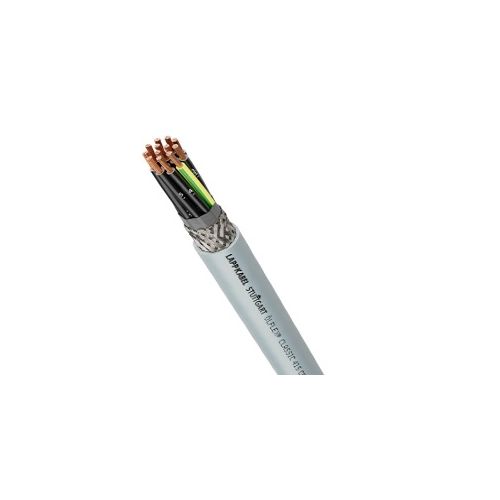

1314058 | OLFLEX CLASSIC 415 CP 34G1,5 | Shielded Cable
Shielded PUR/PVC power and control cable, Number of Conductors: 34, Conductor Diameter: 1.5mm², With GN/YE Protective conductor
| Complete Electronics Part No. | 1314058 |
|---|---|
| Manufacturers Part No. | 1314058 |
| Series: | OLFLEX CLASSIC 415 CP |
| Number of Conductors: | 34 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable - Reduced Outer Diameter |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 500 Metres |
Description
1314058 | ÖLFLEX® Classic 415 CP Cable, 34G1.5
Shielded PUR / PVC Power and Control Cable
Number of Conductors: 34
Conductor Diameter: 1.5mm²
Cable Outer Diameter: 20.8mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Screen: Tin-plated copper braiding, coverage = 85% (nominal value)
Wrapping over stranding: Plastic Film
Core insulation: Polyvinylchloride (PVC T12)
Core identification: White numbers on black (acc. to VDE 0293-1)
Inner Sheath Colour: Black
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL 7001)
Conductor design: IEC 60228 class 5:-fine wire
Screen: Tin-plated copper braiding, coverage = 85% (nominal value)
Wrapping over stranding: Plastic Film
Core insulation: Polyvinylchloride (PVC T12)
Core identification: White numbers on black (acc. to VDE 0293-1)
Inner Sheath Colour: Black
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL 7001)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 2kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -15°C to 70°C
Current rating according to VDE 0298-4
Test Voltage: 2kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -15°C to 70°C
Chemical resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
Flame retardant - No
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Weather resistant - Yes
For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
PUR outer sheath is highly chemical resistant and highly oil resistant
Outer sheath PUR material is resistant to abrasions, notches and cuts
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
PUR outer sheath is highly chemical resistant and highly oil resistant
Outer sheath PUR material is resistant to abrasions, notches and cuts
Especially for environments where electromagnetic compatibility (EMC) is required.
Ideal protection against electromagnetic interference thanks to copper screening braiding
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified
Ideal protection against electromagnetic interference thanks to copper screening braiding
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified
Reel Length= 500M
Lapp part number: 1314058
