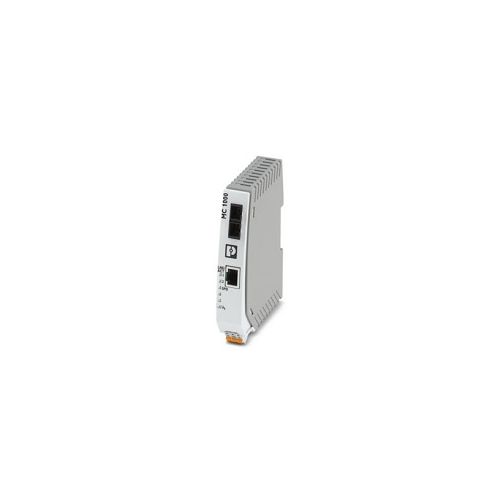

1329817 | MC 1000-MM SC | FO converters

Media converter comes with one 10/100 Mbps twisted-pair RJ45 port and one 100 Mbps multimode fiber port with an SC duplex connector

More Information
Complete Electronics Part No. 1329817
Manufacturers Part No. 1329817
Phoenix Ethernet Series: FO Converters TX - FO
Total 10/100 (RJ45) Ports: 1
Total Ethernet Ports: 2
FX (Optical) Connector Type: SC Duplex
FX (Optical) Cable Type: Multi Mode (MM)
IP Rating: IP30
Description

MC 1000-MM SC - FO converters

For converting 100 BaseTX to multi-mode fiberglass

Ethernet (RJ45 x 1)

Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length: 100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, US
Link Fault Pass Through
Auto-MDI(X)

Ethernet (Optical)

Connection: SC duplex
Transmission medium: Multi-mode fiberglass
Wavelength: 1310 nm

Functions

Converter with SC duplex port for converting 10/100 Base-T to fiber
Supply voltage: 24V DC
Supply voltage range: 12 V DC ... 48 V DC
Power supply connection: Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -10°C ... 60°C
Approvals: CE-compliant, UL 61010-1, UL 61010-2-201

Dimensions

Width: 22.5mm
Height: 123mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced
Mounting Type: DIN Rail

Commercial data

Weight per Piece (excluding packing): 180 g
Part Number:  1329817
GTIN: 4063151624569
Customs tariff number: 85176200
Country of Origin: CA
