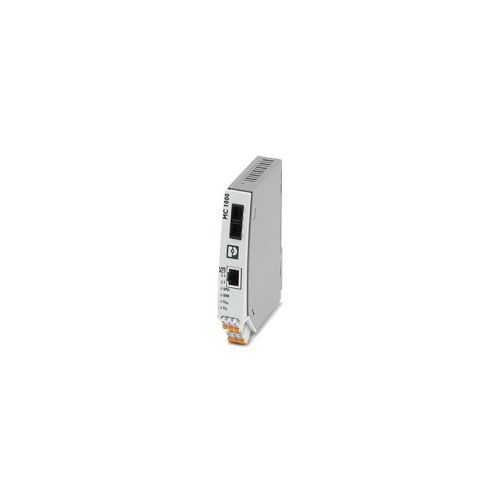

1329820 | MC 1000-SM20 SC | FO converters
FO converter with SC duplex fiber optic connection (1310 nm) for converting 100Base-TX to single-mode fiberglass. Auto MDI(X) function, DIN rail mountable
| Complete Electronics Part No. | 1329820 |
|---|---|
| Manufacturers Part No. | 1329820 |
| Phoenix Ethernet Series: | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports: | 1 |
| Total Ethernet Ports: | 2 |
| FX (Optical) Connector Type: | SC Duplex |
| FX (Optical) Cable Type: | Single Mode (SM) |
| IP Rating: | IP30 |
Description
MC 1000-SM20 SC - FO converters
For converting 100BaseTX to single-mode fiberglass
Ethernet (RJ45 x 1)
Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length:100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, US
Link Fault Pass Through
Auto-MDI(X)
Ethernet (Optical)
Connection: SC Duplex
Transmission medium: Single-mode fiberglass
Wavelength: 1310 nm
Functions
Converter with SC duplex port for converting 10/100 Base-T to single mode fiber
Supply voltage: 24V DC
Supply voltage range: 12 V DC ... 48 V DC
Power supply connection: Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -10°C ... 60°C
Approvals: UL 61010-1, UL 61010-2-201, CE Compliant
Dimensions
Width: 22.5mm
Height: 123mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 110 g
Part Number 1329820
GTIN: 4063151625801
Customs tariff number: 85176200
Country of Origin: CA
