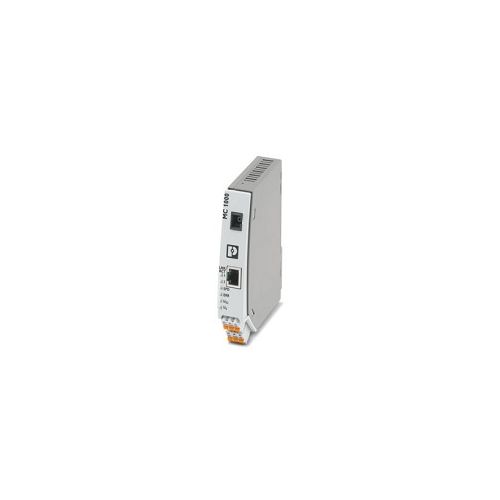

1330262 | 1000T-SM20 SC | FO converters

Media converter comes with one 10/100 Mbps twisted-pair RJ45 port and one 100 Mbps single-mode fiber port with an SC-duplex connector

More Information
Complete Electronics Part No. 1330262
Manufacturers Part No. 1330262
Phoenix Ethernet Series: FO Converters TX - FO
Total 10/100 (RJ45) Ports: 1
Total Ethernet Ports: 2
FX (Optical) Connector Type: SC Duplex
FX (Optical) Cable Type: Single Mode (SM)
IP Rating: IP30
Description

1000T-SM20 SC  - FO converters

For converting 100 BaseTX to single-mode fiberglass

Ethernet (RJ45 x 1)

Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length:100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, Err, US, US2
Link Fault Pass Through
Auto-MDI(X)

Ethernet (Optical)

Connection: SC duplex
Transmission medium: Single-mode fiberglass
Wavelength: 1310 nm


Functions

Converter with SC duplex port for converting 10/100 Base-T to single-mode fiber
Supply voltage: 24V DC / 48 V DC
Supply voltage range: 12 V DC ... 57 V DC
Power supply connection: Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -40°C ... 75°C
Approvals: CE-compliant, UL 61010-1, UL 61010-2-201 (Zone 2)

Dimensions

Width: 22.5mm
Height: 123mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail

Commercial data

Weight per Piece (excluding packing): 180 g
Part Number 1330262
GTIN: 4063151626341
Customs tariff number: 85176200
Country of Origin: CA
