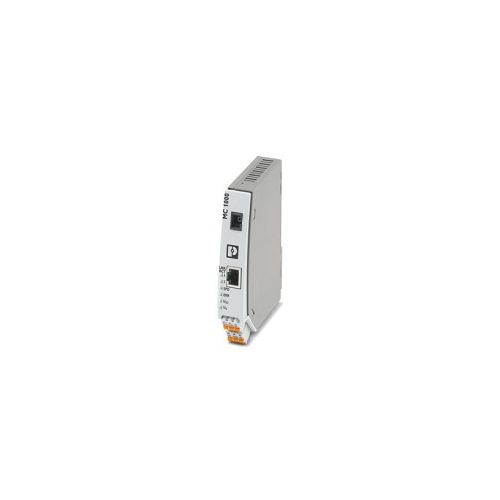

1330588 | MC 1000E-MM WDM A | FO converters
Media converter comes with one 10/100 Mbps twisted-pair RJ45 port and one 100 Mbps WDM multi-mode fiber port with an SC-simplex connector
| Complete Electronics Part No. | 1330588 |
|---|---|
| Manufacturers Part No. | 1330588 |
| Phoenix Ethernet Series: | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports: | 1 |
| Total Ethernet Ports: | 2 |
| FX (Optical) Connector Type: | SC Simplex |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP30 |
Description
MC 1000E-MM WDM A - FO converters
For converting 100 BaseTX to multi-mode WDM fiberglass
Ethernet (RJ45 x 1)
Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length: 100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, Err, US, US2
Link Fault Pass Through
Auto-MDI(X)
Ethernet (Optical)
Connection: SC simplex
Transmission medium: Multi-mode WDM fiberglass
Wavelength: 1310 nm (Transmit), 1550 nm (receive)
Functions
Converter with SC simplex port for converting 10/100 Base-T to multi-mode WDM fiber
Ruggedized EMI protection, wide temperature range.
Supply voltage: 24V DC / 48 V DC
Supply voltage range: 12 V DC ... 57 V DC
Power supply connection: Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -40°C ... 75°C
Approvals: CE-compliant, UL 61010-1, UL 61010-2-201 (Zone 2)
Dimensions
Width: 22.5mm
Height: 125mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 180 g
Part Number: 1330588
GTIN: 4063151627058
Customs tariff number: 85176200
Country of Origin: CA
