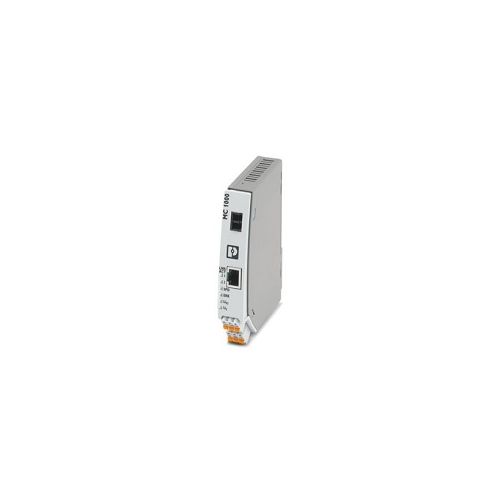

1330611 | MC 1000E-MM LC | FO converters

Fiber optic converter with LC fiber optic connection (1310 nm) for converting 100Base-TX to multi-mode fiberglass. Auto MDI(X) function, DIN rail mountable

More Information
Complete Electronics Part No. 1330611
Manufacturers Part No. 1330611
Phoenix Ethernet Series: FO Converters TX - FO
Total 10/100 (RJ45) Ports 1
Total Ethernet Ports 2
FX (Optical) Connector Type: LC
FX (Optical) Cable Type: Multi Mode (MM)
IP Rating: IP30
Description

MC 1000E-MM LC - FO converters

For converting 100BaseTX to multi-mode fiberglass

Ethernet (RJ45 x 1)

Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length:100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, Err, US, US2
Link Fault Pass Through
Auto-MDI(X)

Ethernet (Optical)

Connection: LC duplex
Transmission medium: Multi-mode fiberglass
Wavelength: 1310 nm


Functions

Converter with LC duplex port for converting 10/100 Base-T to multi - mode fiber
Ruggedized EMI protection
Supply voltage: 24V DC
Supply voltage range: 12 V DC ... 57 V DC
Power supply connection: Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -40°C ... 75°C
Approvals: ATEX: II 3G Ex ec IIC T4 Gc, IECEx: Ex ec IIC T4 Gc
Dimensions
Width: 22.5mm
Height: 125mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail


Commercial data

Weight per Piece (excluding packing): 180 g
Part Number 1330611
GTIN: 4063151626365
Customs tariff number: 85176200
Country of Origin: CA
