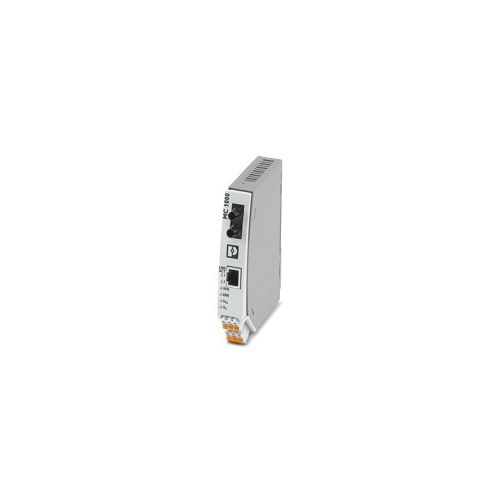

1330723 | MC 1000E-SM20 ST | FO converters
Fiber optic converter with ST (B-FOC) fiber optic connection (1310 nm) for converting 100Base-TX to single-mode fiberglass. Auto MDI(X) function, DIN rail mount
| Complete Electronics Part No. | 1330723 |
|---|---|
| Manufacturers Part No. | 1330723 |
| Phoenix Ethernet Series: | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports: | 1 |
| Total Ethernet Ports: | 2 |
| FX (Optical) Connector Type: | ST (B-FOC) x 1 |
| FX (Optical) Cable Type: | Single Mode (SM) |
| IP Rating: | IP30 |
Description
MC 1000E-SM20 ST - FO converters
For converting 100BaseTX to single-mode fiberglass
Ethernet (RJ45 x 1)
Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length:100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, Err, US, US2
Link Fault Pass Through
Auto-MDI(X)
Ethernet (Optical)
Connection: B-FOC (ST)
Transmission medium: single-mode fiberglass
Wavelength: 1310 nm
Functions
Converter with LC duplex port for converting 10/100 Base-T to single - mode fiber
Ruggedized EMI protection
Supply voltage: 24V DC / 48 V DC
Supply voltage range: 12 V DC ... 57 V DC
Power supply connection: Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -40°C ... 75°C
Approvals: ATEX: II 3G Ex ec IIC T4 Gc, IECEx: Ex ec IIC T4 Gc
Dimensions
Width: 22.5mm
Height: 125mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced / Aluminum / steel sheet DC01
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 180 g
Part Number 1330723
GTIN: 4063151626761
Customs tariff number: 85176200
Country of Origin: CA
