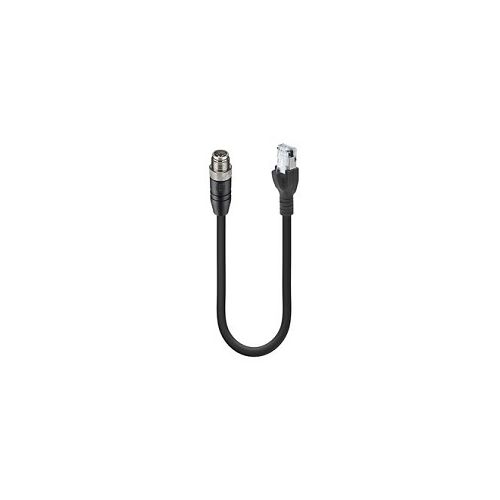

13395| RSTS 8X-RJ45 G-478/0,3 M | Network Cable
Gigabit Ethernet Cat7 Data Double-Ended Cordset: Male straight X-coded black M12 Standard to male straight RJ45-coded black RJ45, shielded30 V AC / 42 V DC
| Complete Electronics Part No. | 13395 |
|---|---|
| Manufacturers Part No. | 13395 |
| Category | CAT 7 |
| Cable Jacket: | PUR |
Description
RSTS 8X-RJ45 G-478/0,3 M
Gigabit Cat 7 Cordset, Double ended
- Double-Ended Cordset:
- M12 standard, male to straight RJ45
- M12 8-pin, X-coded
- Shielded
- 8-wires, 4x2x0.14 mm²
- Operating Voltages: 30 V AC / 42 V DC, 0.5 A
- Outer sheath colour Black
- Operating Temperature: - 40 °C - + 80°C (Fixed Installation)
- Operating Temperature: - 0°C - + 50 °C (Flex Installation)
- Ingress Protection: IP65, IP67 (M12 Side)
- Ingress Protection: IP20 (RJ 45 Side)
- Part Number: 13395
- Cable Length: 0.3M (other lengths avaiable, see below table)
