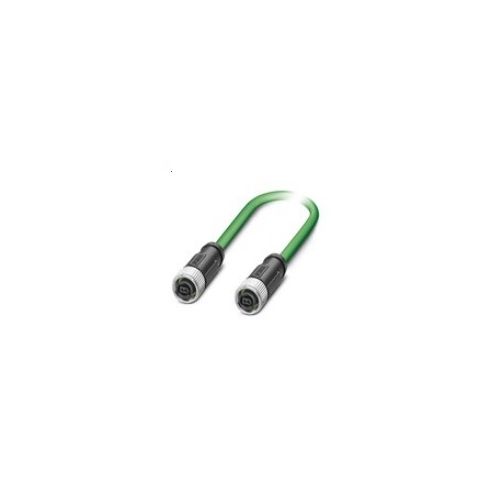

1364623 | SPE-T1-M12FS/ 2,0-99B/M12FS | SPE Cable

Socket straight SPE / IP67, on Socket straight SPE / IP67, cable length: 2 m, CAT B (1 Gbps), 2-position, Shielded, halogen-free
More Information
Complete Electronics Part No. 1364623
Manufacturers Part No. 1364623
Category CAT B (1 Gbps)
Style Socket - Socket
Cable Length: 2 Metres
Description

Single Pair Ethernet Cable (SPE)

CAT B (1 Gbps), 2-position

  • M12 connectors, compatible with IP20 connectors for SPE
  • With Advanced Shielding Technology
  • Single Pair Ethernet CAT B (ISO/IEC 63171), 1 Gbps
  • Nominal Voltage: 72 V DC
  • Connector 1: Socket straight SPE / IP67
  • Connector 2: Socket straight SPE / IP67
  • Cable Type: Single Pair Ethernet PUR flexible, green [99B]
  • External Cable Diameter: 5.8 mm ±0.3 mm
  • Cable Length: 2 metres
  • Outer Sheath Colour: Green
  • Single wire colour: White, Blue
  • 1 pair with fillers twisted horizontally
  • Minimum Bending Radius (Fixed): 4 x Diameter
  • Minimum Bending Radius (Flexible): 8 x Diameter
  • Flame Resistance: according to IEC 60332-1-2
  • Flammability rating according to UL 94: V0
  • Oil Resistance: in accordance with DIN EN 60811-404
  • Operating Tempetature (Fixed installation): -40°C ... 80°C
  • Operating Tempetature (Flexible installation): -25°C ... 80°C
  • Ingress Protection: IP65 / IP67
  • Weight (each): 222g
  • Country Of Origin: PL
  • Made to Order (non-returnable)
