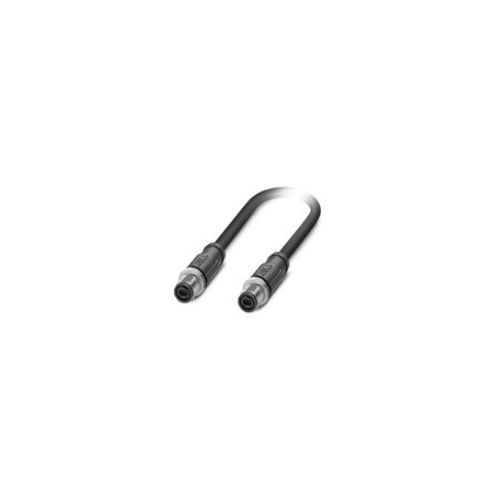

1364629 | SPE-T1-M12MS/ 2,0-97B/M12MS | SPE Cable

Plug straight SPE / IP67, on Plug straight SPE / IP67, cable length: 2 m, CAT A (10 Mbps), 2-position, Shielded, halogen-free
More Information
Complete Electronics Part No. 1364629
Manufacturers Part No. 1364629
Category CAT A (10 Mbps)
Style Plug - Plug
Cable Length: 2 Metres
Description

Single Pair Ethernet Cable (SPE)

CAT A (10 Mbps), 2-position

  • M12 connectors, compatible with IP20 connectors for SPE
  • With Advanced Shielding Technology
  • Single Pair Ethernet CAT A (ISO/IEC 63171), 10 Mbps
  • Connector 1: Plug straight SPE / IP67
  • Connector 2: Plug straight SPE / IP67
  • Cable Type: Single Pair Ethernet PUR flexible, black [97B]
  • External Cable Diameter: 5.1 mm ±0.3 mm
  • Cable Length: 2 metres
  • Outer Sheath Colour: Black
  • Outer Sheath Material: PVC
  • Single wire colour: White, Blue
  • 1 pair with fillers twisted horizontally
  • Flammability rating according to UL 94: V0
  • Oil Resistance: in accordance with DIN EN 60811-404
  • Operating Tempetature (Fixed installation): -20°C ... 80°C
  • Ingress Protection: IP65 / IP67
  • Weight (each): 22.22g
  • Country Of Origin: PL
  • Made to Order (non-returnable)
