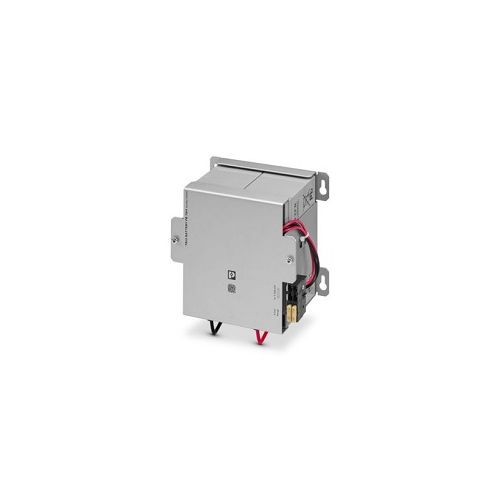

1384031| TRIO-BAT/PB/24DC/7AH | UPS Battery Module

UPS Battery module, VRLA-AGM, 24 V DC, 7 Ah, with lead AGM (Absorbent Glass Mat) technology,  batteries are fully charged before being despatched

More Information
Complete Electronics Part No. 1384031
Manufacturers Part No. 1384031
Phoenix Ethernet Series: Trio UPS Battery Module
Input Voltage 24 V DC
Operating Voltage: DC 24 V
Output Type 7 Ah
Description

TRIO-BAT/PB/24DC/7AH

UPS Battery Module

Input Data

Input voltage: 24 V DC (SELV)
Nominal capacity: 7 Ah
Charging current max:. 2.1 A
End-of-charge voltage: 27.6 V (20 °C)

Output Data

Output current max: 50 A
Output fuse: 2x 25 A T 25A 32V, ATOF 287 from Littelfuse
Buffer time: 9 min. (20A), 3 min. (40 A)
End-of-discharge voltage: 19.2 V

Functionality

Connection in parallel: Yes
Battery type: BB Battery / BP7-12FR
Battery technology: VRLA-AGM
Temperature sensor: No
Battery connecting cable: 6 mm²
AWG/kcmil: 10
Cable length: 1990 mm
Cable colour: 1 x Red and 1 x Black
Degree of protection: IP20
Operating Temperature: -20°C ... 40°C
Approvals: cULus Liste Approval ID: E123528
(See datasheet for full list of approvals)

Dimensions

Width: 164 mm
Height: 159 mm
Depth: 114 mm

Commercial Data

Weight per Piece (excluding packing): 6442 g
Weight per Piece (including packing): 7000g
Part Number: 1384031
GTIN: 4063151758905
Customs tariff number: 85072080
Country of Origin: CN
