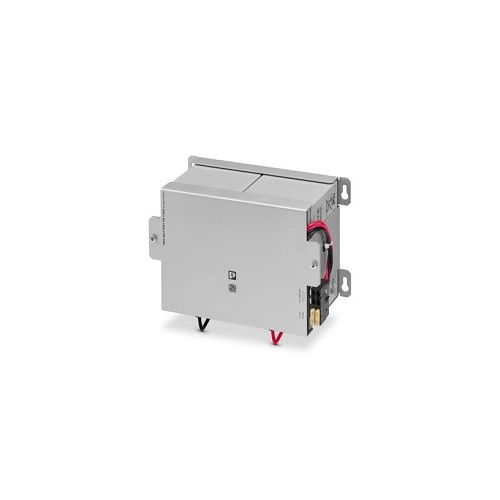

1394727 | TRIO-BAT/PB/24DC/12AH | UPS Battery Module
UPS Battery module, VRLA-AGM, 24 V DC, 12 Ah, with lead AGM (Absorbent Glass Mat) technology, batteries are fully charged before being despatched
| Complete Electronics Part No. | 1394727 |
|---|---|
| Manufacturers Part No. | 1394727 |
| Phoenix Ethernet Series: | Trio UPS Battery Module |
| Input Voltage: | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type: | 12 Ah |
Description
TRIO-BAT/PB/24DC/12AH
UPS Battery Module
Input Data
Input voltage: 24 V DC (SELV)
Nominal capacity: 12 Ah
Charging current max:. 3.6 A
End-of-charge voltage: 27.6 V (20 °C)
Output Data
Output current max: 50 A
Output fuse: 2x 25 A T 25A 32V, ATOF 287 from Littelfuse
Buffer time: 21 min. (20A), 8 min. (40 A)
End-of-discharge voltage: 19.2 V
Functionality
Connection in parallel: Yes
Battery type: BB Battery / BP12-12FR
Battery technology: VRLA-AGM
Temperature sensor: No
Battery connecting cable: 6 mm²
AWG/kcmil: 10
Cable length: 1990 mm
Cable colour: 1 x Red and 1 x Black
Degree of protection: IP20
Operating Temperature: -20°C ... 40°C
Approvals: cULus List Approval ID: E123528
(See datasheet for full list of approvals)
Dimensions
Width: 233 mm
Height: 159 mm
Depth: 114 mm
Commercial Data
Weight per Piece (excluding packing): 9671 g
Weight per Piece (including packing): 10190g
Part Number: 13947297
GTIN: 4063151777555
Customs tariff number: 85072080
Country of Origin: CN
