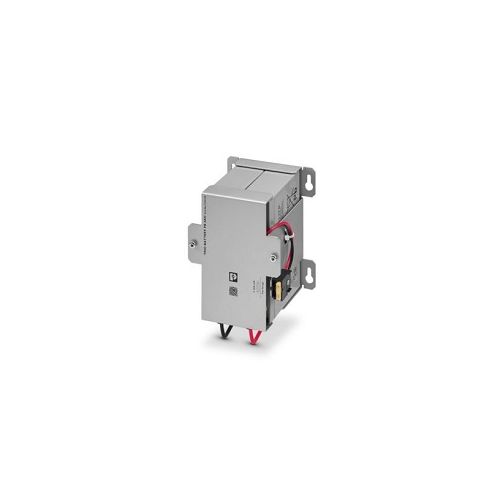

1394730 | TRIO-BAT/PB/24DC/4AH | UPS Battery Module
UPS Battery module, VRLA-AGM, 24 V DC, 4 Ah, with lead AGM (Absorbent Glass Mat) technology, batteries are fully charged before being despatched
| Complete Electronics Part No. | 1394730 |
|---|---|
| Manufacturers Part No. | 1394730 |
| Phoenix Ethernet Series: | Trio UPS Battery Module |
| Input Voltage | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type | 4 Ah |
Description
TRIO-BAT/PB/24DC/4AH
UPS Battery Module
Input Data
Input voltage: 24 V DC (SELV)
Nominal capacity: 4 Ah
Charging current max:. 1.2 A
End-of-charge voltage: 27.6 V (20 °C)
Output Data
Output current max: 25 A
1x 25 A T 25A 32V, ATOF 287 from Littelfuse
Buffer time: 4.5 min. (20A), 3 min. (25 A)
End-of-discharge voltage: 19.2 V
Functionality
Connection in parallel: Yes
Battery type: BB Battery / HR4.2-12FR
Battery technology: VRLA-AGM
Temperature sensor: No
Battery connecting cable: 4 mm²
AWG/kcmil: 12
Cable length: 2000 mm
Cable colour: 1 x Red and 1 x Black
Degree of protection: IP20
Operating Temperature: -20°C ... 40°C
Approvals: cULus Listed, Approval ID: E123528
(See datasheet for full list of approvals)
Dimensions
Width: 115 mm
Height: 154 mm
Depth: 113 mm
Commercial Data
Weight per Piece (excluding packing): 3778 g
Weight per Piece (including packing): 4310g
Part Number: 1394730
GTIN: 4063151776831
Customs tariff number: 85072080
Country of Origin: CN
