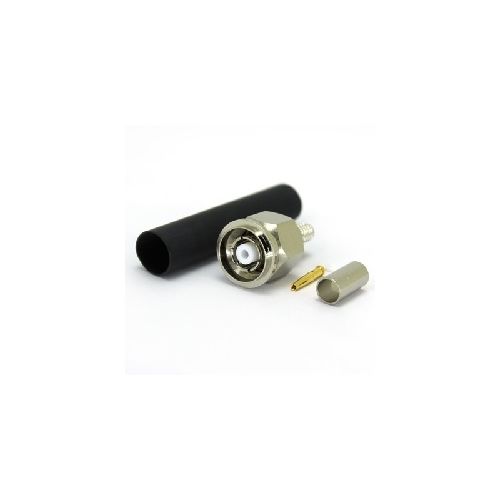

14-045-B3-DA | 14045B3DA | TNC Reverse Polarity Crimp Plug IP68
TNC 50 ohm reverse polarity, solder crimp plug. Gold plated centre contact, Suitable for Times LMR®200 or similar cables in group DA.
| Complete Electronics Part No. | 14045B3DA |
|---|---|
| Manufacturers Part No. | 14-045-B3-DA |
| Type | Reverse Polarity |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 150N min
- Weight: 13.82g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +110°C
- IP Rating (Mated): IP68
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Threaded Coupling Nut: Brass
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
