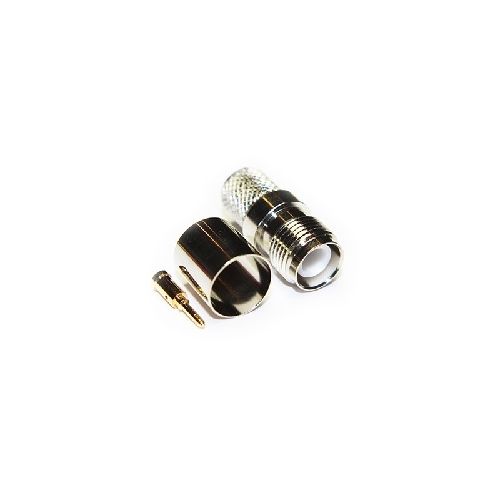

14-054-B3-DE | 14054B3DE | TNC Reverse Polarity Crimp Jack
TNC 50 ohm reverse polarity, straight full crimp jack. Contact and crimp sleeve are annealed, Suitable for Times LMR®400 or similar cables in group DE.
| Complete Electronics Part No. | 14054B3DE |
|---|---|
| Manufacturers Part No. | 14-054-B3-DE |
| Type | Reverse Polarity |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 150N min
- Weight:
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: Delrin
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
