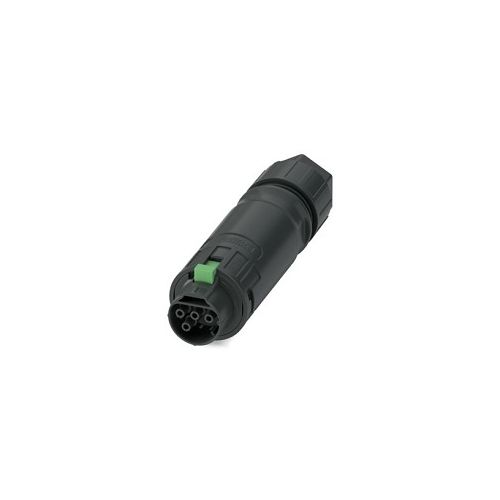

1437004 | CBC-PRC 3-FC-FS6 8-21 HR 400V | Coupler Connector

Coupler connector, : ArcZero, black, number of poles: 3, rated voltage: 400 V DC, rated current: 20 A, Connection method: Screw connection

More Information
Complete Electronics Part No. 1437004
Manufacturers Part No. 1437004
Description

CBC-PRC 3-FC-FS6 8-21 HR 400V

ArcZero Coupler connector

Functionality

Nominal rated voltage: 400 V DC
Rated current 20 A (With 2.5 mm² conductor)
Robust outdoor design even for extreme conditions
Halogen free
3 Poles
External cable diameter: 8 mm ... 21 mm
Single wire, cross section 1.5 mm² 6 mm²
Screw Connection
Operating Temperature: -40°C ... 105°C
Halogen-free
Colour: Black
Protection class II (plastic housing)
Ingress protection: IP66, IP68 (2m / 2h), IP69
Insertion/withdrawal cycles: 500 (under rated load)
ROHS Compliant

Dimensions

Width: 37.6 mm
Height: 39 mm
Depth: 137 mm

Commercial data

Weight per Piece (excluding packing): 22.22 g
Weight per Piece (including packing): 131.3 g
Part Number: 1437004
GTIN: 4063151812560
Customs tariff number: 85366990
Country of Origin: DE
