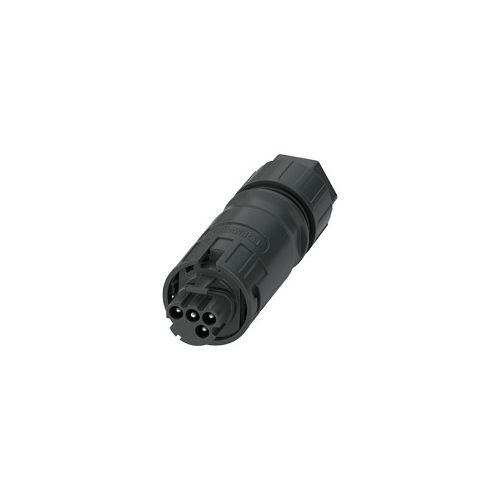

1453450 | CBC-PRC 3-FC-MS6 8-21 800V | Connector
Coupler connector, : ArcZero, black, number of poles: 3, rated voltage: 800 V DC, rated current: 20 A, Connection method: Screw connection
| Complete Electronics Part No. | 1453450 |
|---|---|
| Manufacturers Part No. | 1453450 |
Description
CBC-PRC 3-FC-MS6 8-21 800V
ArcZero connector
Functionality
Nominal rated voltage: 800 V DC
Rated current 20 A (With 2.5 mm² conductor)
Robust outdoor design even for extreme conditions
Halogen free
3 Poles
External cable diameter: 8 mm ... 21 mm
Single wire, cross section 1.5 mm² 6 mm²
Screw Connection
Operating Temperature: -40°C ... 105°C
Halogen-free
Colour: Black
Protection class II (plastic housing)
Ingress protection: IP66, IP68 (2m / 2h), IP69
Fit the protective cap when not plugged in
Insertion/withdrawal cycles: 500 (under rated load)
ROHS Compliant
Dimensions
Width: 37.6 mm
Height: 37.6 mm
Depth: 129 mm
Commercial data
Weight per Piece (excluding packing): 22.22 g
Weight per Piece (including packing): 128 g
Part Number: 1453450
GTIN: 4063151841805
Customs tariff number: 85366990
Country of Origin: DE
