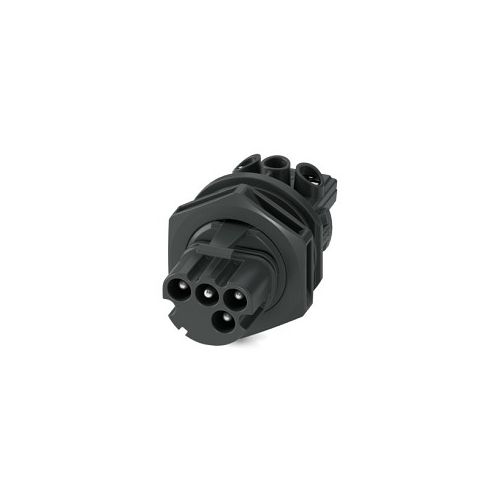

1453451 | CBC-PRC 3-FT25-MS6 800V | Panel Feed Through

Panel feed-through, ArcZero, colour: black, number of positions: 3, rated voltage: 800 VDC, rated current: 20 A, Contact connection type: Pin

More Information
Complete Electronics Part No. 1453451
Manufacturers Part No. 1453451
Description

CBC-PRC 3-FT25-MS6 800V

ArcZero Panel feed through

Functionality

Nominal rated voltage: 800 V DC
Rated current 20 A (With 2.5 mm² conductor)
Robust outdoor design even for extreme conditions
Halogen free
3 Poles
External cable diameter: 8 mm ... 21 mm
Single wire, cross section 1.5 mm² 6 mm²
Screw Connection
Operating Temperature: -40°C ... 105°C
Halogen-free
Colour: Black
Protection class II (plastic housing)
Ingress protection: IP66, IP68 (2m / 2h), IP69
Fit the protective cap when not plugged in
Insertion/withdrawal cycles: 500 (under rated load)
ROHS Compliant

Dimensions

Width: 35 mm
Height: 35 mm
Depth: 72.6 mm

Commercial data

Weight per Piece (excluding packing): 22.22 g
Weight per Piece (including packing): 65.4 g
Part Number: 1453451
GTIN: 4063151841713
Customs tariff number: 85366990
Country of Origin: DE
