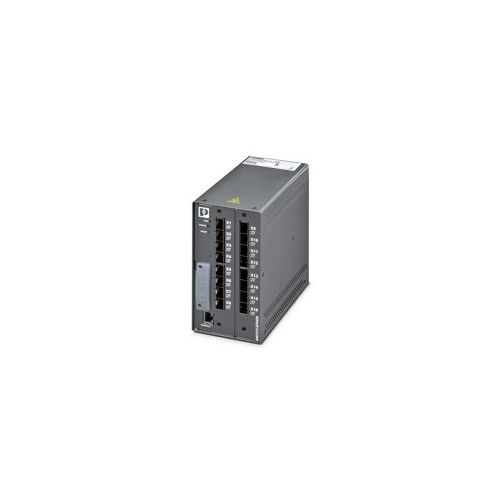

1471546 | FL SWITCH EP6400-16GSFP-HV | Ethernet Switch

Managed switch with sixteen SFP ports at 100/1000 Mbps and operating temperature of -40 … +85°C, 100-240 V AC/DC (Nom.) power supply

More Information
Complete Electronics Part No. 1471546
Manufacturers Part No. 1471546
Phoenix Ethernet Series: Raptor Ethernet Series
Managed / Unmanaged: Managed
Total 100/1000 (FX) Ports: 16
Total Ethernet Ports: 16
FX (Optical) Connector Type: SFP
IP Rating: IP20
Description

FL SWITCH EP6400-16GSFP-HV

Industrial Ethernet Switch

Ethernet (RJ45)

N/A

Ethernet (SFP x 16)

Transmission speed: 100/1000 Mbps (Full Duplex)
Transmission physics: Depending on the SFP module
Transmission length: up to 80 km (depending on the SFP module used)

Ethernet (Combo ports)

N/A

Switch Functions

Layer 2 and Layer 3 functions
IEEE 1588 v2 precision timing support
Support for Access Control Lists (ACL)
Supply voltage: 100 V AC/DC ... 240 V AC/DC
Signal contact control voltage: 24 V DC
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -40°C ... 85°C
CE Compliant

Dimensions

Width: 82.7mm
Height: 188.39mm
Depth: 197.12mm

Commercial data

Weight per Piece (excluding packing): 2009 g
Weight per Piece (including packing): 2597 g
Part Number 1471546
GTIN: 4063151877521
Customs tariff number 85176200
Country of Origin: CA
