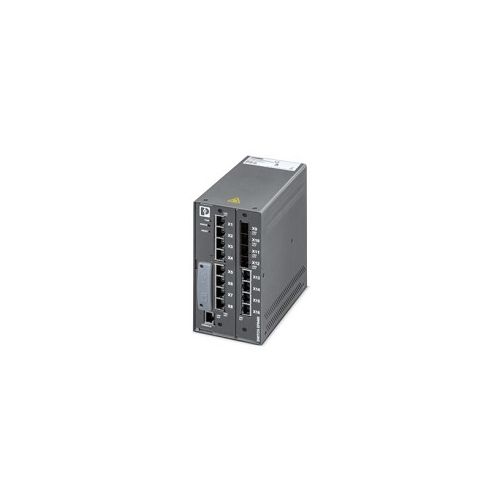

1471548 | FL SWITCH EP6412-4GSFP-LV | Ethernet Switch
Managed switch with twelve RJ45 ports at 10/100/1000 Mbps, four SFP ports at 100/1000 Mbps and operating temperature of -40 … +85°C
| Complete Electronics Part No. | 1471548 |
|---|---|
| Manufacturers Part No. | 1471548 |
| Phoenix Ethernet Series: | Raptor Ethernet Series |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 4 |
| Total 10/100/1000 (RJ45) Ports: | 12 |
| Total Ethernet Ports: | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
FL SWITCH EP6412-4GSFP-LV
Industrial Ethernet Switch
Ethernet (RJ45 x 12)
Transmission speed: 10/100/1000 Mbps
Transmission length:100 m (per segment)
Auto negotiation and autocrossing
Ethernet (SFP x 4)
Transmission speed: 100/1000 Mbps (Full Duplex)
Transmission physics: Depending on the SFP module
Transmission length: up to 80 km (depending on the SFP module used)
Ethernet (Combo ports)
N/A
Switch Functions
Layer 2 and Layer 3 functions
IEEE 1588 v2 precision timing support
Support for Access Control Lists (ACL)
Supply voltage: 24 V DC (Redundant DC power supplies are load sharing)
Supply voltage range: 10 V DC ... 36 V DC
Signal contact control voltage: 24 V DC
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -40°C ... 85°C
CE Compliant
Dimensions
Width: 82.7mm
Height: 188.39mm
Depth: 197.12mm
Commercial data
Weight per Piece (excluding packing): 2020 g
Weight per Piece (including packing): 2646 g
Part Number 1471548
GTIN: 4063151877538
Customs tariff number 85176200
Country of Origin: CA
