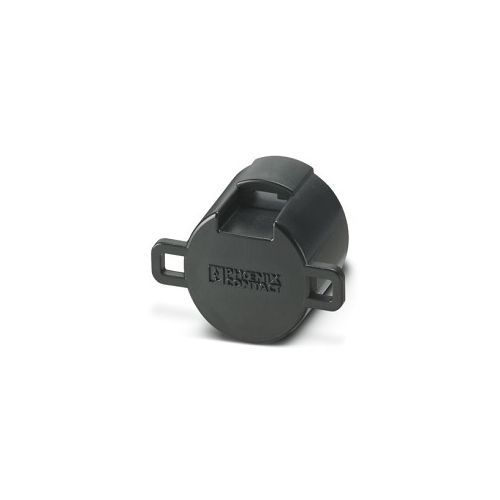

1476945 | CBC-PRC COVER M 800V | Protective Cap
Protective cap, Colour: black, rated voltage: 800 VDC, Fit the protective cap when not plugged in. Robust outdoor design even for extreme conditions
| Complete Electronics Part No. | 1476945 |
|---|---|
| Manufacturers Part No. | 1476945 |
Description
CBC-PRC COVER M 800V
ArcZero Protective Cap
Functionality
Nominal rated voltage: 800 V DC
Robust outdoor design even for extreme conditions
Halogen free
Fit the protective cap when not plugged in
Operating Temperature: -40°C ... 105°C
Protection class II (plastic housing)
Ingress protection: IP66, IP68 (2m / 2h), IP69
ROHS Compliant
Dimensions
Width: 37.8 mm
Height: 26.4 mm
Depth: 35.5 mm
Commercial data
Weight per Piece (excluding packing): 22.22 g
Part Number: 1476945
GTIN: 4063151889890
Customs tariff number: 85389099
Country of Origin: PL
