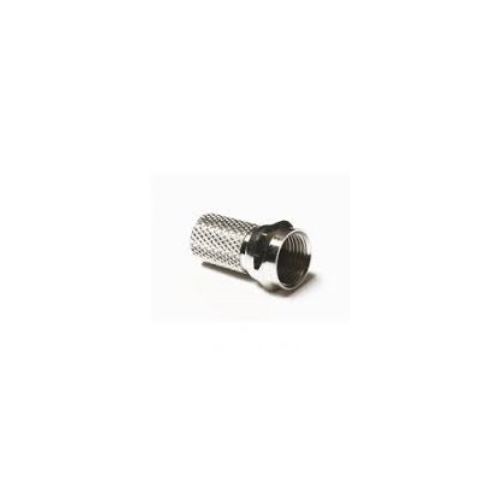

15-004-ZO-AG | 15004Z0AG | F Type Twist on Plug
F Type Twist-On straight 75 ohm plug. Fit to cable using Twist-On termination for Mini RG59 or similar cables in group AG.
| Complete Electronics Part No. | 15004Z0AG |
|---|---|
| Manufacturers Part No. | 15-004-ZO-AG |
| Male/Female: | Male |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC61169-47
- RoHS3 Compliant
- Centre Contact Termination: Easy Fit
- Outer Contact Termination: Twist
- Mating Cycles: 250
- Cable Retention: 50N min
- Weight:
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -40 to +80°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: N/A
- Outer Contact: Brass
- Outer Contact Plating Nickel
- Pack Size 1
