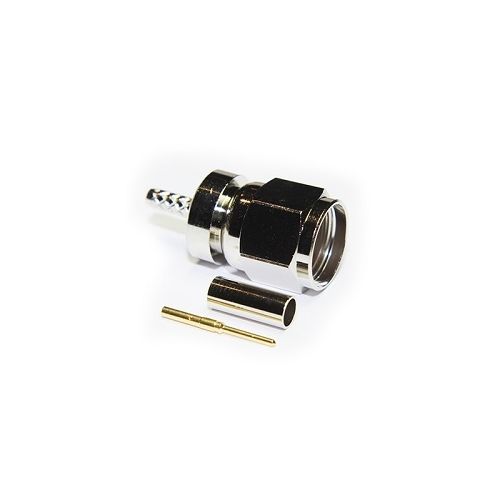

15-005-B36-AB | 15005B36AB | F Type Crimp Plug
F Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for RG179 and similar cables in group AB
| Complete Electronics Part No. | 15005B36AB |
|---|---|
| Manufacturers Part No. | 15-005-B36-AB |
| Male/Female: | Male |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: True 75 Ohm
- Frequency Range Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC61169-47
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Cable Retention: 150N min
- Weight:
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating Nickel
- Pack Size 1
