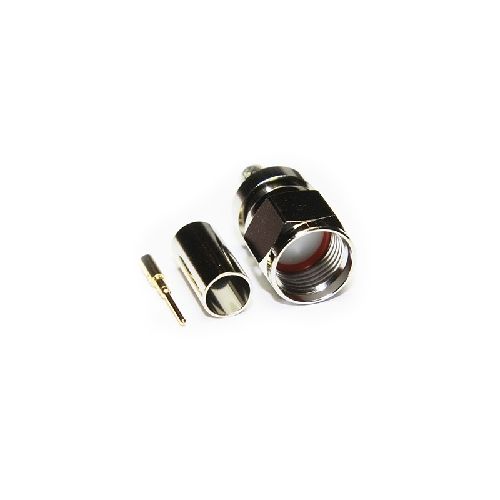

15-005-B36-FG | 15005B36FG | F Type Crimp Plug

F Type Crimp / Crimp Plug straight True 75 ohm plug. Gold plated centre contact, Suitable for CM2231, CM3641 and similar cables in group FG
More Information
Complete Electronics Part No 15005B36FG
Manufacturers Part No. 15-005-B36-FG
Male/Female Male
Type Straight
Impedance 75 Ohm
Working Frequency Up To 3 GHz
Description

Electrical Specification

  • Impedance: True 75 Ohm
  • Frequency Range Up to 3GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard: IEC61169-47
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Cable Retention: 150N min
  • Weight:
  • Mating Force: 10N max
  • Un-coupling Force: 10N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Brass
  • Outer Contact:  Brass
  • Insulator: PTFE
  • Centre Contact Plating: Gold
  • Outer Contact Plating Nickel
  • Pack Size 1
