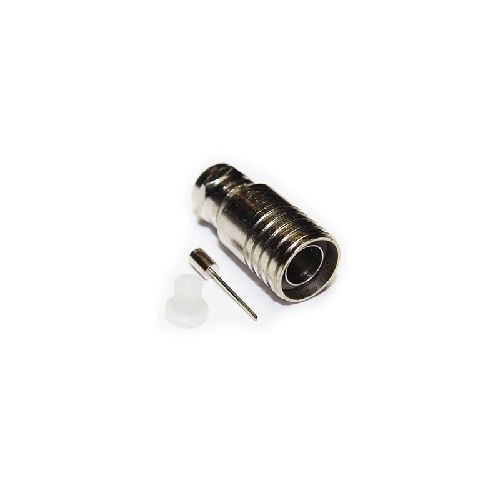

15-015-Z0-AN | 15015Z06AN | F Type Integral Crimp Plug
F Type single piece integral Crimp plug straight 50 ohm plug. Gold plated centre contact, Suitable for RG213 and similar cable in group AN.
| Complete Electronics Part No. | 15015Z06AN |
|---|---|
| Manufacturers Part No. | 15-015-Z0-AN |
| Male/Female: | Male |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC61169-47
- RoHS3 Compliant
- Centre Contact Termination: N/A
- Outer Contact Termination: Crimp
- Mating Cycles: 50
- Cable Retention: 150N min
- Weight:
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -40 to +80°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: N/A
- Outer Contact: Brass
- Outer Contact Plating Nickel
- Pack Size 1
