15301002 | OLFLEX TRAIN 301 TW 300V 1X1 | Rolling Stock Cable
Highly flexible Power and Control cable, Number of Conductors: 50, Conductor Cross section: 0.75mm², Cable Outer Diameter: 22.5mm
| Complete Electronics Part No. | 15301002 |
|---|---|
| Manufacturers Part No. | 15301002 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series: | OLFLEX TRAIN 301 TW |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description

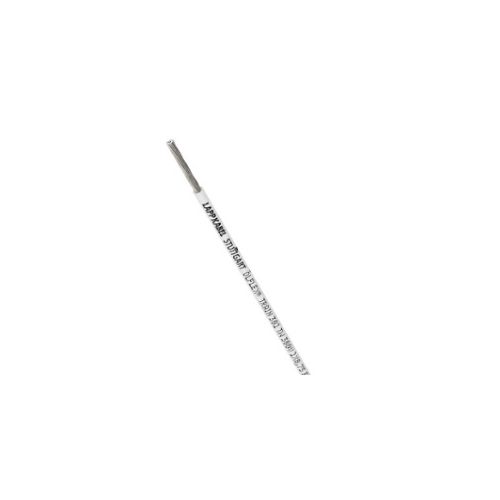

15301002 | OLFLEX TRAIN 301 TW 300V 1X1
Single Core Control Cable For Railway Applications
Reduced Insulation Wall Thickness
Conductor Cross Section: 1.0mm²
Cable Outer Diameter: 1.6mm
Core: Tinned-copper strand EN 50306-2
Core insulation: Electron beam cross-linked polymer compound
SRC (Special Round Conductor)
Colour of core insulation: white
Flame-retardant acc. to EN 60332-1-2
Halogen-free acc. to EN 60754-1
Low smoke density according to EN 50306
Oil, Acid & Alkali-resistant
Ozone Resistant acc. to EN 50306
Fuel resistant acc. to EN 50306
PWIS free - VDMA 24364-B2-L
Halogen-free acc. to EN 60754-1
Low smoke density according to EN 50306
Oil, Acid & Alkali-resistant
Ozone Resistant acc. to EN 50306
Fuel resistant acc. to EN 50306
PWIS free - VDMA 24364-B2-L
Temperature Range Fixed Install: -45°C to +1255°C
Temperature, occasional flexing: -35°C to 105°C
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to EN 50355
Current rating according to EN 50355
Cable Length: 100M
Lapp part number: 15301002
For use in railway vehicles
MM = extra low temperature. extra oil and fuel resistant
For fixed installations and applications where limited movement may occur
Resistant to mechanical influences in harsh environmental conditions
Reduced insulation wall thickness
Good chemical resistance
Reduced flame spreading
Extended temperature range
CE marked, UKCA marked, EAC certified
MM = extra low temperature. extra oil and fuel resistant
For fixed installations and applications where limited movement may occur
Resistant to mechanical influences in harsh environmental conditions
Reduced insulation wall thickness
Good chemical resistance
Reduced flame spreading
Extended temperature range
CE marked, UKCA marked, EAC certified
