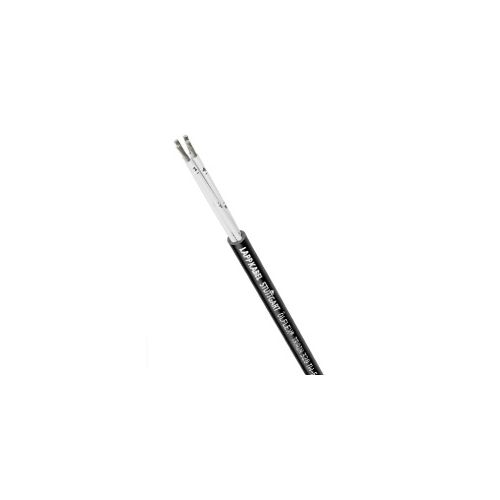

15320002 | OLFLEX TRAIN 320 TW-E 13X0,5 | Rolling Stock Cable
Multi Core Control Cable For Railway Applications, EN 50306-4 class E, type MM and EN 45545-2, No of Conductors: 13, Conductor Cross Section: 0.5mm²
| Complete Electronics Part No. | 15320002 |
|---|---|
| Manufacturers Part No. | 15320002 |
| Number of Conductors: | 13 |
| Conductor Cross Section: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series: | OLFLEX TRAIN 320 TW-E |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
15320002 | OLFLEX TRAIN 320 TW-E 300V 13X0.5
Multi Core Control Cable For Railway Applications
EN 50306-4 class E, type MM and EN 45545-2
Number of Conductors: 13
Conductor Cross Section: 0.5mm²
Cable Outer Diameter: 8.8mm
Cores: Tinned-copper strand EN 50306-1
SRC (Special Round Conductor)
Core Insulation: Electron beam cross-linked Polymer compound
White cores with black numbers acc. to DIN EN 50334
Outer sheath: electron beam cross-linked polymer-compound
Outer sheath colour: Black
Halogen-free acc. to EN 60754-1
Flame-retardant acc. to EN 60332-1-2
Cold-resistant
Low smoke density according to EN 50306-1
Oil, Acid & Alkali-resistant
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Oil, Acid & Alkali-resistant
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to EN 50355
Current rating according to EN 50355
Temperature Range (Fixed Install): -45°C to 125°C
Temperature, occasional flexing: -35°C to 105°C
Cable Length: 100M
Lapp part number: 15320002
