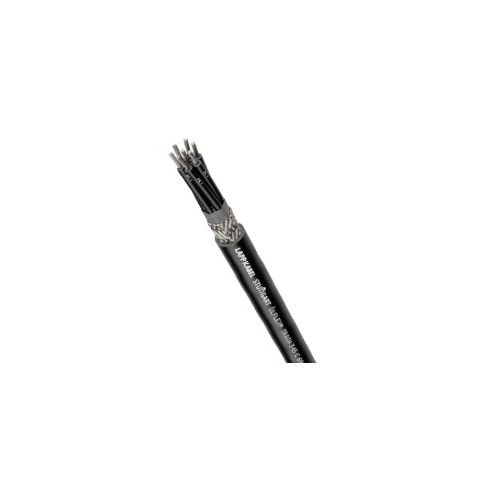

15345023 | OLFLEX TRAIN 345 C 600V 2X50 | Rolling Stock Cable
Screened Multi Core Control Cable For Railway Applications, Meets EN 50264-3-2 type MM S and EN 45545-2, Conductors: 2, Conductor Cross Section: 50.0mm²
| Complete Electronics Part No. | 15345023 |
|---|---|
| Manufacturers Part No. | 15345023 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 50mm² |
| Rated Voltage: | 600V |
| Special Application Series: | OLFLEX TRAIN 345 C |
| Shielding: | Shielded / Screened |
| Cable Length: | 100 Metres |
Description
15345023 | OLFLEX TRAIN 345 C 600V 2X50
Type MM S Multi Core Control Cable - Screened
Meets EN 50264-3-2 type MM S and EN 45545-2
Number of Conductors: 2
Conductor Cross Section: 50.0mm²
Cable Outer Diameter: 27.6mm
Without protective conductor
Tinned-copper strand, fine-wire
Wrapping: Halogen-free plastic foil
Screen: Tinned-copper braiding
Colour of core insulation: Black with white numbers
Core colour code: EN 50044, VDE 0293-1
Core insulation: Electron beam cross-linked polymer compound EI 109
Outer Sheath: Electron beam cross-linked polymer compound EM 104
Core insulation: Electron beam cross-linked polymer compound EI 109
Outer Sheath: Electron beam cross-linked polymer compound EM 104
Outer sheath colour: Black, similar to RAL 9005
Oil and Fuel Resistant
Acid and Alkali Resistant
Ozone and Cold resistant
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Nominal Voltage: AC 0.6/1 kV AC rms according to IEC
Current rating according to EN 50355
Temperature Range (Fixed Install): -45°C to 120°C
Temperature, occasional flexing: -35°C to 90°C
Cable Length: 100M
Lapp part number: 15345023
For use in railway vehicles
For fixed installations and applications where limited movement may occur
Resistant to mechanical influences in harsh environmental conditions
Copper screening protects against electromagnetic interference
Good chemical resistance
Extended temperature range
Reduced flame spreading
For fixed installations and applications where limited movement may occur
Resistant to mechanical influences in harsh environmental conditions
Copper screening protects against electromagnetic interference
Good chemical resistance
Extended temperature range
Reduced flame spreading
