15350016 | OLFLEX TRAIN 350 300V 32X1,5 | Rolling Stock Cable
Multi Core Control Cable For Railway Applications, Meets EN 50264-3-2 type MM and EN 45545-2, Number of Conductors: 32, Conductor Cross Section: 1.5mm²
| Complete Electronics Part No. | 15350016 |
|---|---|
| Manufacturers Part No. | 15350016 |
| Number of Conductors: | 32 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series: | OLFLEX TRAIN 350 |
| Shielding: | Shielded / Screened |
| Cable Length: | 100 Metres |
Description

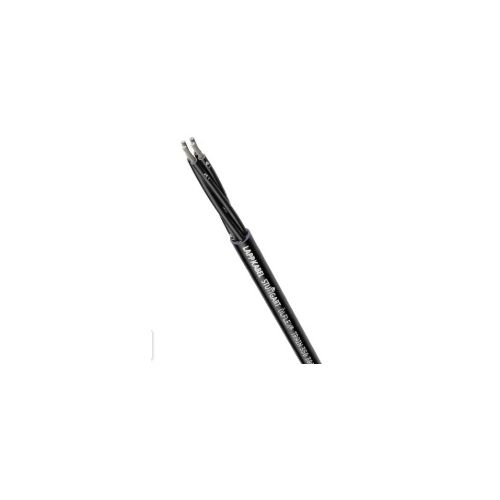

15350016 | OLFLEX TRAIN 350 300V 32X1,5
Type MM Multi Core Control Cable For Railway Applications
Meets EN 50264-3-2 type MM and EN 45545-2
Number of Conductors: 32
Conductor Cross Section: 1.5mm²
Cable Outer Diameter: 19.6mm
Tinned-copper strand, fine-wire - IEC 60228 class 5
Colour of core insulation: Black with white numbers
Core colour code: EN 50334, VDE 0293-1
Core insulation: Electron beam cross-linked polymer compound EI 109
Outer Sheath insulation: Electron beam cross-linked polymer compound EM 104
Core insulation: Electron beam cross-linked polymer compound EI 109
Outer Sheath insulation: Electron beam cross-linked polymer compound EM 104
Outer sheath colour: Black
Oil and Fuel Resistant
Acid and Alkali Resistant
Ozone and Cold resistant
Halogen-free acc. to EN 60754-1
Flame-retardant acc. to EN 60332-1-2
Low smoke density acc. to EN 61034-2
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Nominal Voltage: 300/500 V AC rms according to IEC
Current rating according to EN 50355
Temperature Range (Fixed Install): -45°C to 120°C
Temperature, occasional flexing: -35°C to 90°C
Cable Length: 100M
Lapp part number: 153500
For use in railway vehicles
For fixed installations and applications where limited movement may occur
Good chemical resistance
Resistant to mechanical influences in harsh environmental conditions
Extended temperature range
Reduced flame spreading
For fixed installations and applications where limited movement may occur
Good chemical resistance
Resistant to mechanical influences in harsh environmental conditions
Extended temperature range
Reduced flame spreading
