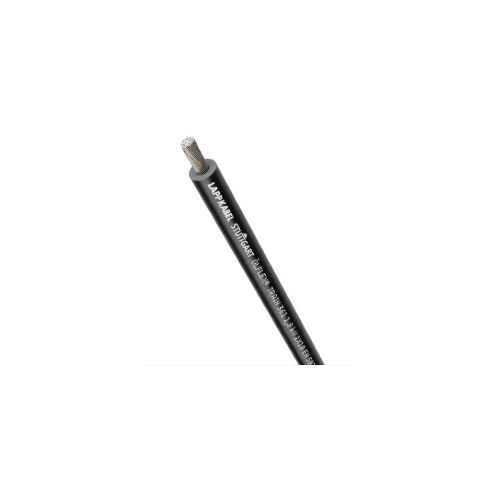

15361002 | OLFLEX TRAIN 361 1,8KV 1X4 BK | Rolling Stock Cable
Single Core Cable For Railway Applications, EN 50264-3-1 type M and EN 45545-2, No. of Conductors 1, Cable Cross Section: 4.0mm², Outer Diameter: 6.7mm
| Complete Electronics Part No. | 15361002 |
|---|---|
| Manufacturers Part No. | 15361002 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 4.0mm² |
| Rated Voltage: | 1.8 / 3KV |
| Special Application Series: | OLFLEX TRAIN 361 |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
Compliant with standards for use in rail vehicles
Good chemical resistance
Resistant to mechanical influences in harsh environmental conditions
Extended temperature range
Reduced flame spreading
15361002 | OLFLEX TRAIN 361 1,8KV 1X4
Single Core Type M Cable For Railway Applications
EN 50264-3-1 type M and EN 45545-2
Number of Conductors 1
Conductor Cross Section: 4.0mm²
Cable Outer Diameter: 6.7mm
Conductor: Fine-wire strands of tinned copper
Insulation: Electron beam cross-linked Polymer compound EI 109
Insulation Colour: Black
Acid and Alkali resistant to EN 50264-3-1
Fuel and Oil resistant to EN 50264-3-1
Ozone resistant acc. to EN 50264-3-1/ EN 50305
Halogen-free acc. to EN 60754-1
Flame-retardant acc. to EN 60332-1-2
Low smoke density acc. to EN 61034-2
Good chemical resistance
UV resistant
Nominal Voltage: 1.8/3 kV rms according to IEC
Temperature Range (Fixed Install): -45°C to 120°C
Temperature, occasional flexing: -35°C to 90°C
Cable Length: 100M
Lapp part number: 15361002
Compliant with standards for use in rail vehicles
Good chemical resistance
Resistant to mechanical influences in harsh environmental conditions
Extended temperature range
Reduced flame spreading
