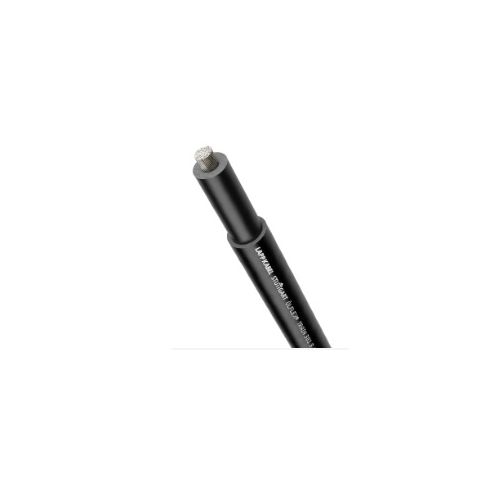

15381014 | OLFLEX TRAIN 381 3,6KV 1X300 | Rolling Stock Cable
Single Core MM Cable For Railway Applications, Meets EN 50264-3-1 type MM and EN 45545-2, Number of Conductors 1, Conductor Cross Section: 300.0mm²
| Complete Electronics Part No. | 15381014 |
|---|---|
| Manufacturers Part No. | 15381014 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 300mm² |
| Rated Voltage: | 3.6 / 6kV |
| Special Application Series: | OLFLEX TRAIN 381 |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
15381014 | OLFLEX TRAIN 381 3,6KV 1X300
Single Core MM Cable For Railway Applications
Meets EN 50264-3-1 type MM and EN 45545-2
Number of Conductors 1
Conductor Cross Section: 300.0mm²
Cable Outer Diameter: 33.0mm
Conductor: Fine-wire strands of tinned copper
Insulation: Electron beam cross-linked Polymer compound EI 109
Outer sheath: electron beam cross-linked polymer-compound EM 104
Outer sheath colour: Black
Cold-resistant
Oil and fuel resistant to EN 50264-3-1
Acid and Alkali resistant to EN 50264-3-1
Ozone resistant acc. to EN 50264-3-1/ EN 50305
Halogen-free acc. to EN 60754-1
Flame-retardant acc. to EN 60332-1-2
UV resistant
Nominal Voltage: 3.6/6 kV
Temperature Range (Fixed Install): -45°C to 120°C
Cable Length: 100M
Lapp part number: 15381014
High electrical strength and mechanical durability due to dual-layer cable construction
Good chemical resistance
Resistant to mechanical influences in harsh environmental conditions
Extended temperature range
Reduced flame spreading
Good chemical resistance
Resistant to mechanical influences in harsh environmental conditions
Extended temperature range
Reduced flame spreading
