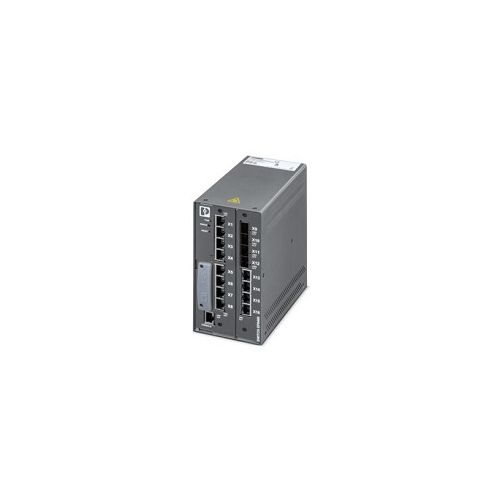

1539368 | FL SWITCH EP6512-4GSFP-HV | Ethernet Switch
Security-enabled managed switch with eight RJ45 ports at 10/100/1000 Mbps, four SFP ports at 100/1000 Mbps, Operating temperature of -40 … +85°C
More Information
Complete Electronics Part No.
1539368
Manufacturers Part No.
1539368
Phoenix Ethernet Series:
Raptor Ethernet Series
Managed / Unmanaged:
Managed
Total 100/1000 (FX) Ports:
4
Total 10/100/1000 (RJ45) Ports:
8
Total Ethernet Ports:
12
FX (Optical) Connector Type:
SFP
IP Rating:
IP20
Description
FL SWITCH EP6512-4GSFP-HV
Industrial Ethernet Switch
Ethernet (RJ45 x 8)
8 x RJ45 10/100/1000 Mbps ports
Auto negotiation and autocrossing
Transmission length: 100 m (per segment)
Ethernet (SFP x 4)
4 x SFP ports at 100/1000 Mbps (Full Duplex)
Transmission physics depending on the SFP module
Ethernet (Combo ports)
N/A
Switch Functions
Layer 2 and Layer 3 functions
IEEE 1588 v2 precision timing support
Support for Access Control Lists (ACL)
RADIUS, and TACAC’s authentication
Supply voltage: 100 V AC/DC ... 240 V AC/DC
Signal contact control voltage: 24 V DC
Connection method: Screw connection
Degree of protection: IP20
Operating Temperature: -40°C ... 85°C
CE Compliant
Dimensions
Width: 82.7mm
Height: 188.39mm
Depth: 197.12mm
Commercial data
Weight per Piece (excluding packing): 2005 g
Weight per Piece (including packing): 2612 g
Part Number 1539368
GTIN: 4067923011458
Customs tariff number 85176200
Country of Origin: CA
