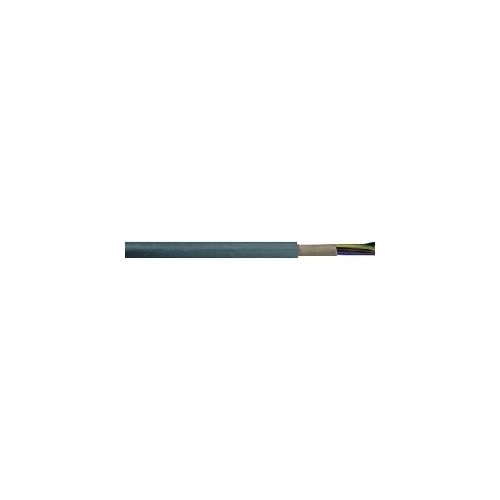

1550008 | NYY-J 19G1,5 RE | Direct Burial Cable

Fixed installation, direct burial, PVC cable, 19 Core, Conductor Diameter: 1.5mm²
More Information
Complete Electronics Part No 1550008
Manufacturers Part No. 1550008
Number of Conductors 19
Conductor Size 1.5mm²
Description

NYY-J 19G1,5 RE

Fixed installation, direct burial, PVC cable

  • Number of Cores: 19
  • Conductor Diameter: 1.5mm²
  • For indoor and outdoor use
  • Burial without additional, suitable underground protection
  • Flame-retardant according IEC 60332-1-2
  • Round conductor form
  • Single-wire conductor
  • Nominal voltage: 0.6/1.0 kV
  • Bare copper wire conductor
  • Temperature Range - Fixed Installation: -40°C to +70°C
  • Outer sheath: Based on PVC
  • Alternative to PVC installation cable NYM
  • Cable Outer Diameter 22mm
  • Reel Length: 50 Metres
