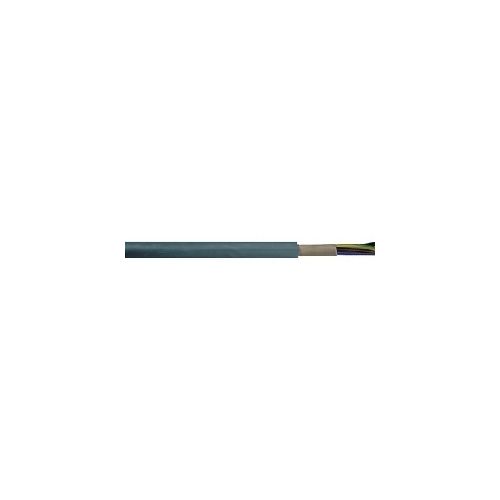

15500113 | NYY-J 4G2,5 RE | Direct Burial Cable
Fixed installation, direct burial, PVC cable, 4 Core, Conductor Diameter: 2.5mm²
| Complete Electronics Part No. | 15500113 |
|---|---|
| Manufacturers Part No. | 15500113 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 2.5mm² |
Description
NYY-J 4G2,5 RE
Fixed installation, direct burial, PVC cable
- Number of Cores: 4
- Conductor Diameter: 2.5mm²
- For indoor and outdoor use
- Burial without additional, suitable underground protection
- Flame-retardant according IEC 60332-1-2
- Round conductor form
- Single-wire conductor
- Nominal voltage: 0.6/1.0 kV
- Bare copper wire conductor
- Temperature Range - Fixed Installation: -40°C to +70°C
- Outer sheath: Based on PVC
- Alternative to PVC installation cable NYM
- Cable Outer Diameter 14mm
- Reel Length: 50 Metres
