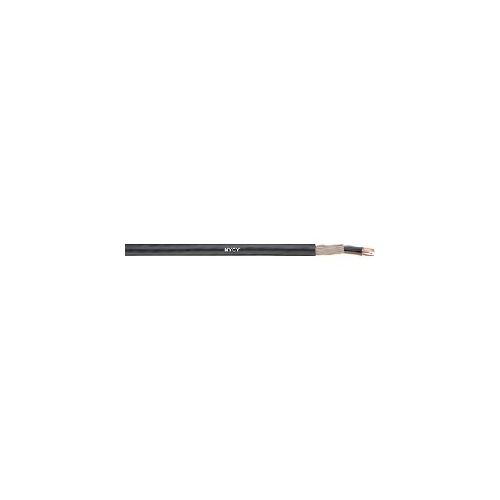

15503223 | NYCY 4X4 RE/4 | Direct Burial Cable
PVC cable with concentric, helical copper conductor and cross-conductive spiral, 4 Core, Conductor Diameter 4mm²
| Complete Electronics Part No. | 15503223 |
|---|---|
| Manufacturers Part No. | 15503223 |
| Number of Conductors: | 4 |
| Conductor Size: | 4.0mm² |
Description
NYCY 4X4 RE/4
Fixed installation, direct burial PVC cable
- Number of Cores: 4
- Conductor Diameter: 4mm²
- Round conductor form
- Single-wire conductor
- Concentric, helical copper conductor and cross-conductive spiral
- Burial without additional underground protection
- Flame-retardant according IEC 60332-1-12
- Bare copper wire conductor
- Nominal voltage: U0/U: 0.6/1.0 kV
- Outer sheath: Based on PVC
- Core insulation: Based on PVC
- Temperature Range - Fixed Installation: -40°C to +70°C
- Cable Outer Diameter 18mm
- Reel Length: 100 Metres
