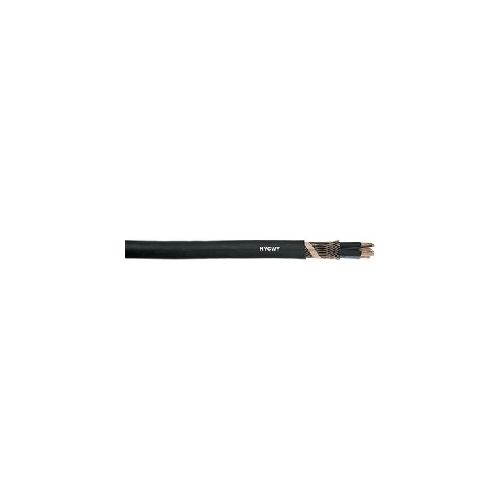

15505003 | NYCWY 2X10 RE/10 | Direct Burial Cable
PVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 2 Core, Conductor Diameter 10mm²
| Complete Electronics Part No. | 15505003 |
|---|---|
| Manufacturers Part No. | 15505003 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 10.0mm² |
Description
NYCWY 2X10 RE/10
Fixed installation, direct burial PVC cable
- Number of Cores: 2
- Conductor Diameter: 10mm²
- Round conductor form
- Single-wire conductor
- Concentric, wave-like copper conductor and cross-conductive spiral
- Burial without additional underground protection
- Flame-retardant according IEC 60332-1-13
- Bare copper wire conductor
- Nominal voltage: U0/U: 0.6/1.0 kV
- Outer sheath: Based on PVC
- Core insulation: Based on PVC
- Temperature Range - Fixed Installation: -40°C to +70°C
- Cable Outer Diameter 19mm
- Reel Length: 100 Metres
